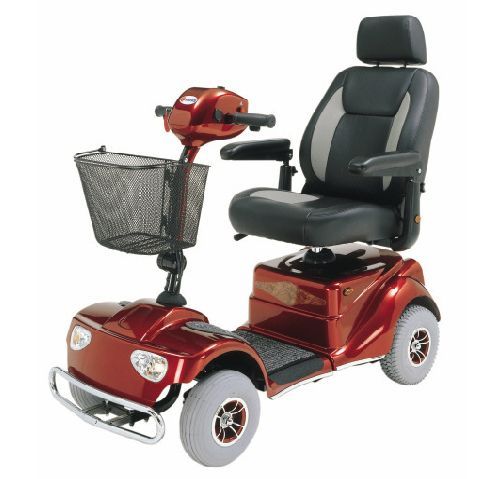

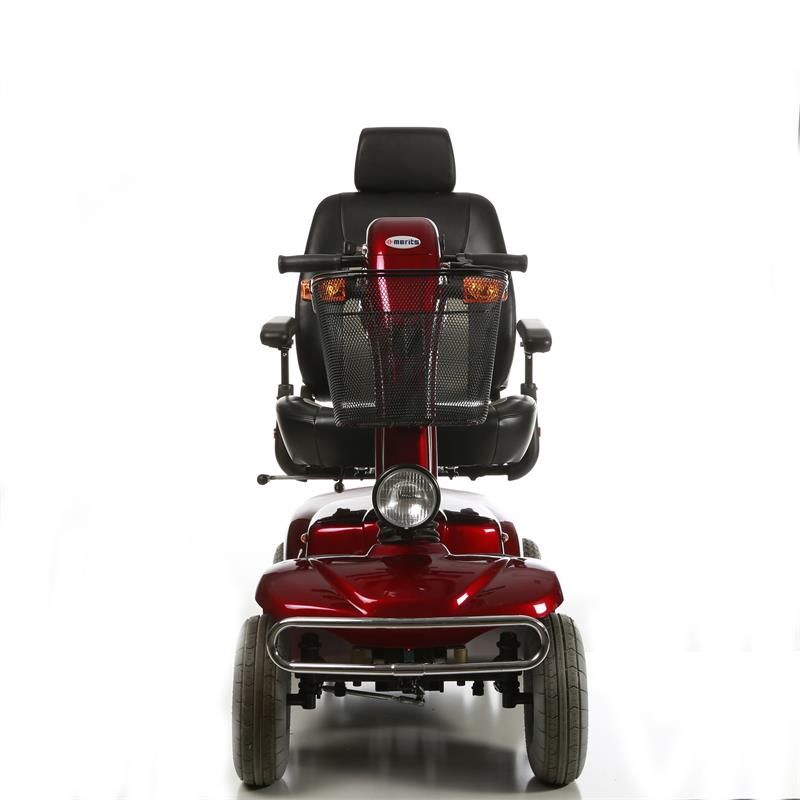

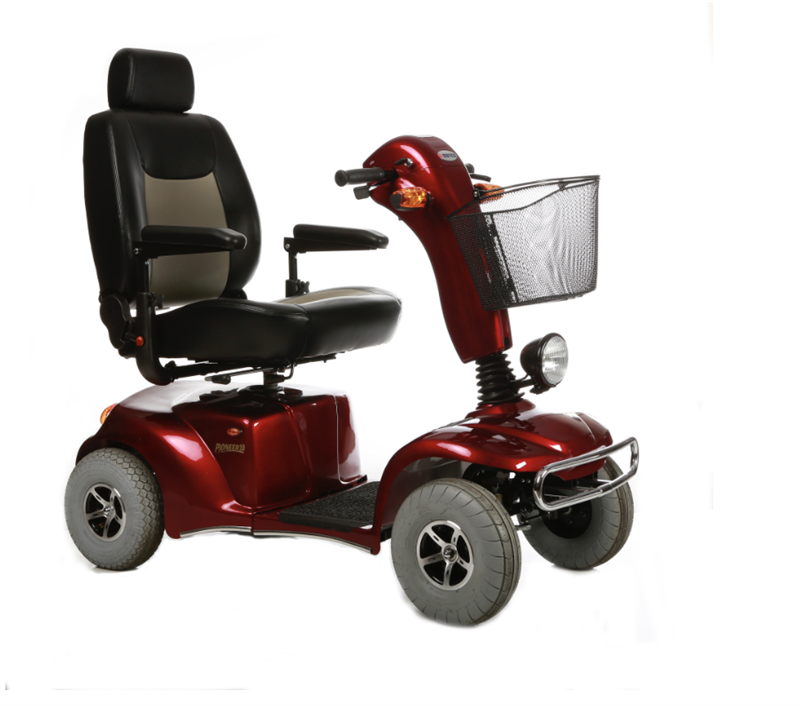

Merits Pioneer 10 4-Wheel Scooter in Red

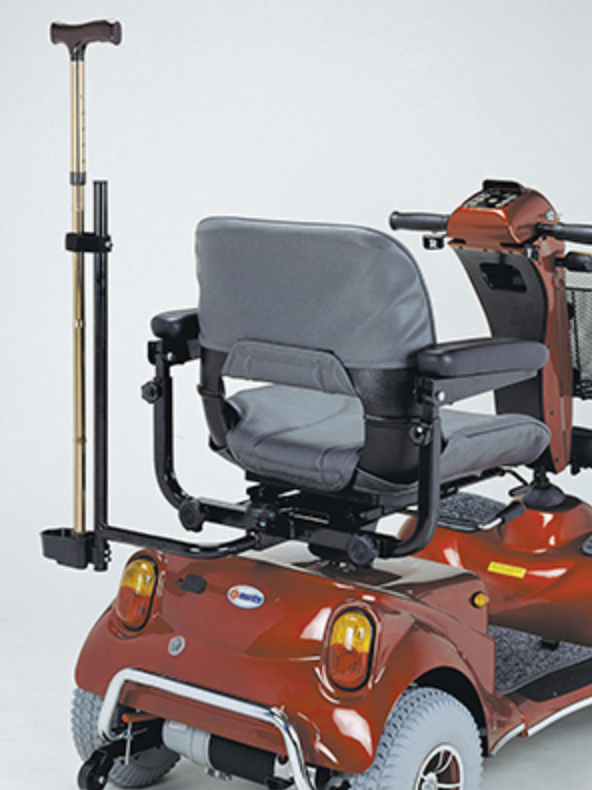

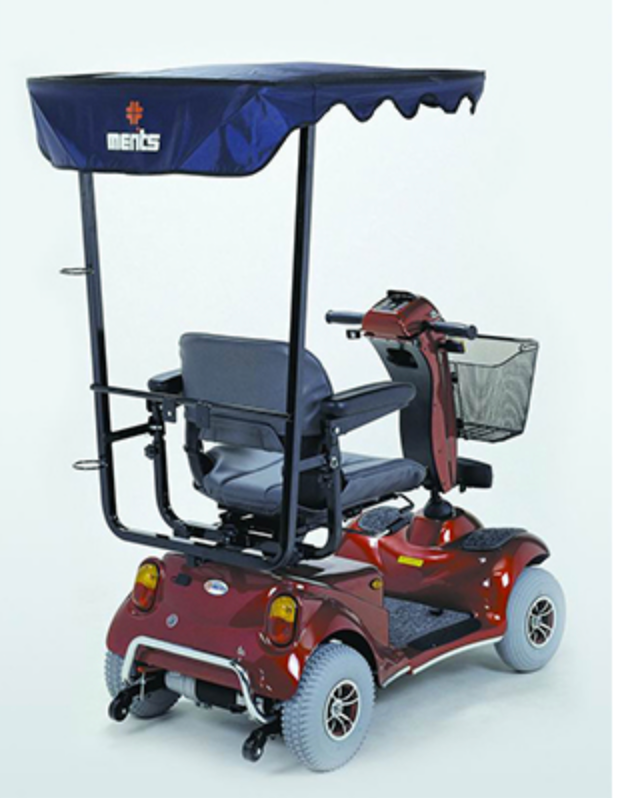

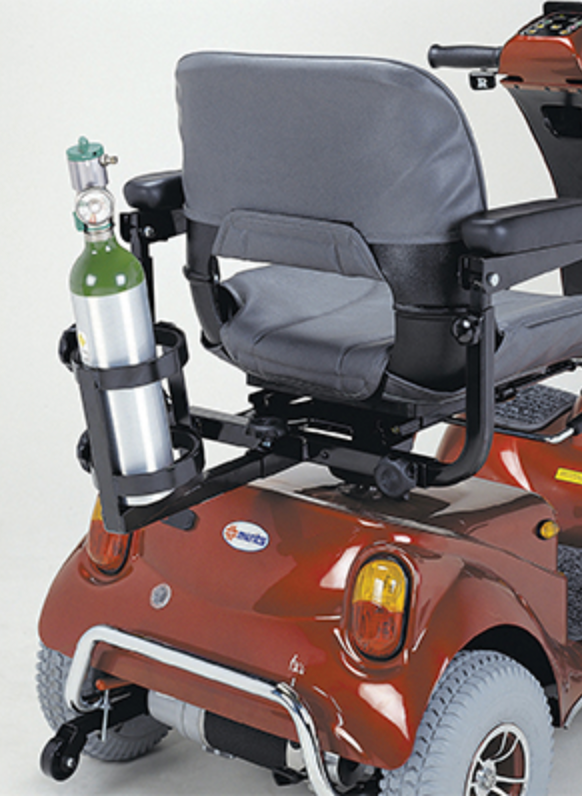

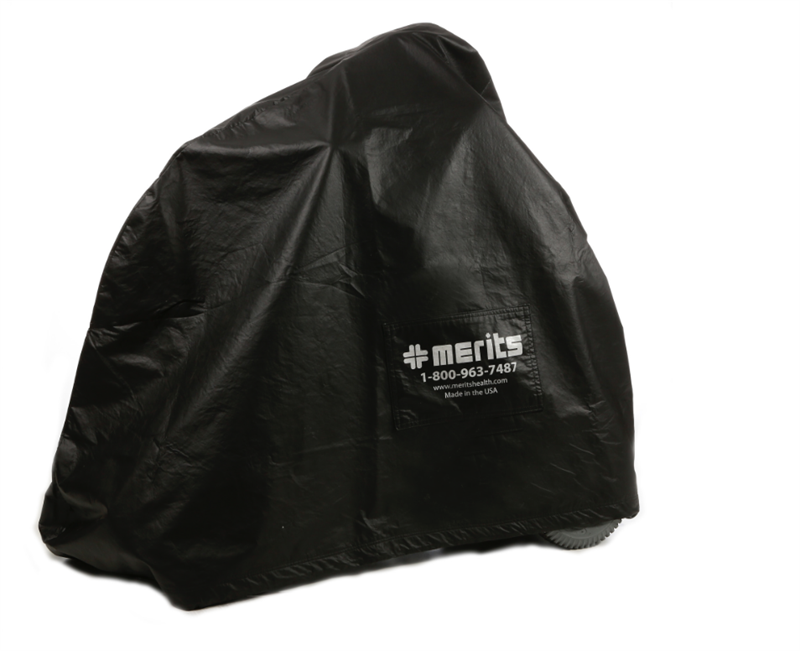

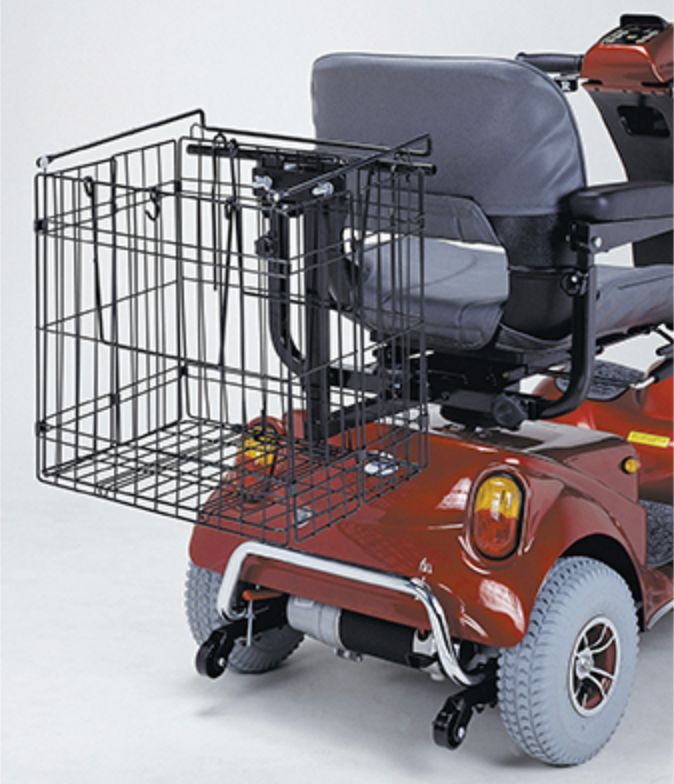

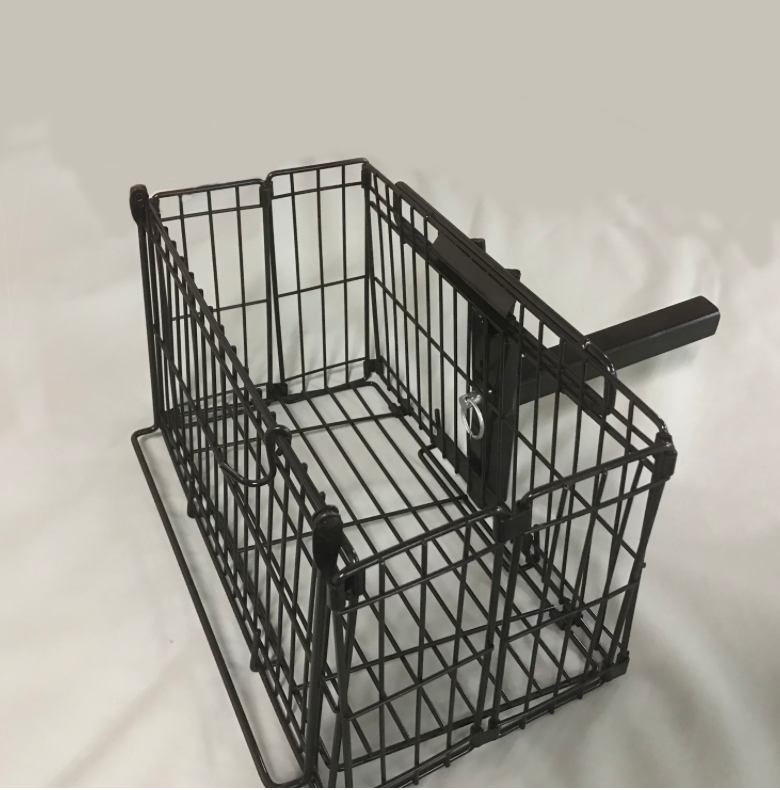

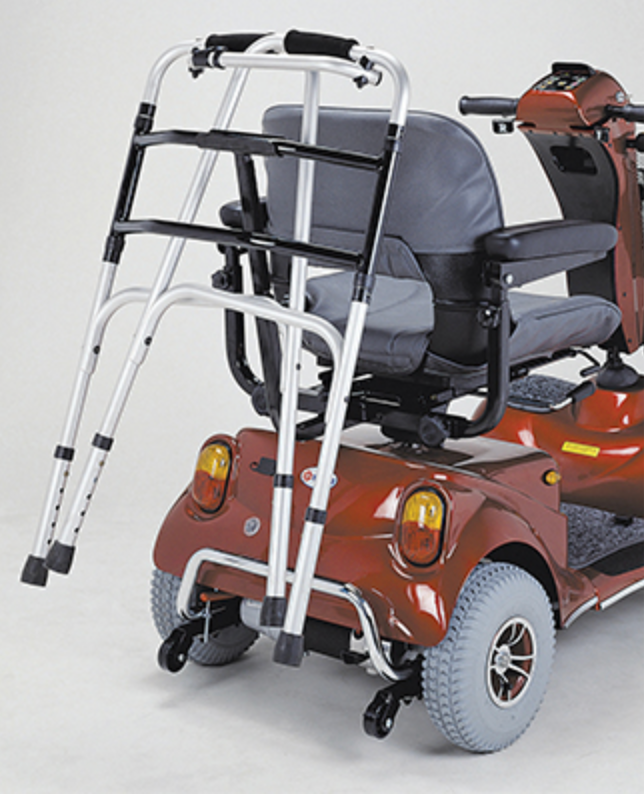

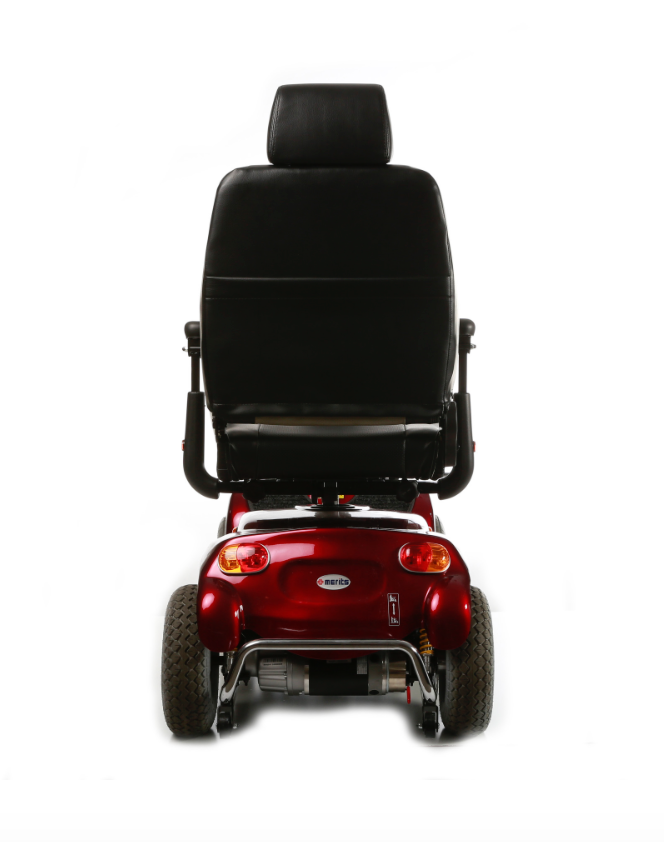

Merits Pioneer 10 4-Wheel Scooter in RedMerits Pioneer 10 4-Wheel Scooter in RedMerits Pioneer 10 4-Wheel Scooter in RedBack of Merits Pioneer 10 4-Wheel Scooter in RedOptional Weather CoverOptional Canopy without foldable basketOptional Oxygen Tank HolderOptional Walker HolderOptional Cane HolderOptional Foldable Rear BasketOptional Foldable Rear Basket

Merits Pioneer 10 4-Wheel Scooter



Retail: $6,048.00
Your Savings: $2,281.60 (38 %)

Product Options


Accessories/Delivery Options

Additional Accessories

[+] Increase font size [-] Decrease font size

The Pioneer 10 4-Wheel Scooter by Merits is equipped with modern high-tech electronics, special features for a more comfortable ride and supports up to 500 lbs. The Pioneer 10 has a one piece frame to increase strength and comes standard with a 22”W x 20” D high back sliding captain seat, 12.5" pneumatic tires, automatic safety turning half speed control by sensor, and a half-speed control pre-setting for safety. With a *maximum drive range up to 32 miles at a speed up to 6 mph, this heavy duty scooter is capable of going long distances!


  • Standard Features: Front basket, 12.5" Pneumatic tires, half-speed control pre-setting, automatic safety turning half-speed, front basket, 22"W x 20" D Captain's seat
  • 22” W x 20" D high back sliding Captain’s seat comes with adjustable armrests attached
  • Half-speed control pre-setting is on the dashboard and easy to access
  • Automatic safety turning half speed is controlled by a sensor
  • 12.5" Pneumatic Tires
  • Optional Flat-Proof Tires available
  • Two rear anti-tip wheels
  • Standard Front and Rear Bumper
  • Large frame; cannot be easily transported
  • *Maximum drive range of 32 miles on a fully charged battery with a *Maximum speed Up to 6 MPH
  • Manufactures’ Limited 5 Year on Frame | Limited 18 Month Warranty on Motor/Electronics
  • 500 lb Weight Capacity

  • Additional Information:

    Weight Capacity500 lbs
    Manufacturer’s WarrantyLimited 5 Years on Frame| Limited 18 Months on Motors and Electronics
    Batteries12 Volt | Group 24 (70AH-80AH) x 2Pieces
    ChargerOff-Board 6A
    Total Weight247 lbs.
    ControllerDynamic Rhino 160A
    Maximum Speed*6 MPH
    Mileage on Fully Charged Battery*32 Miles
    Tires12.5” (Pneumatic)
    Ground Clearance (Under Deck)4”
    Turning Radius62”
    Overall Dimensions of Base55” L x 27” W x 47” H
    Seat Dimensions22” W x 20” D x 16” – 19” H
    Backrest Height22”
  • Safety Notice: Read and understand manual completely prior to operating the scooter.
  • (*) Specification performance is determined in the laboratory setting based on ideal conditions (minimal friction, no wind and controlled temperature and pressure with an average standard weight.). Results obtained during laboratory testing.

  • The Pioneer 10 4-Wheel Heavy duty mobility scooter provides a comfortable ride with a travel range up to 32 miles!

    Color: red
    Weight Capacity: 500 lbs
    Item Number: S341-1ARMU | S341--ARMU
    Name: Merits Pioneer 10 4-Wheel Scooter
    Manufacturer: Merits
    : S341--ARMU
